ASA Lift TC1010E Single Row Trailed Cabbage Harvester

Configuration

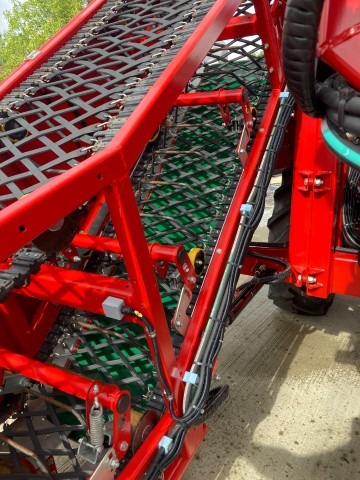

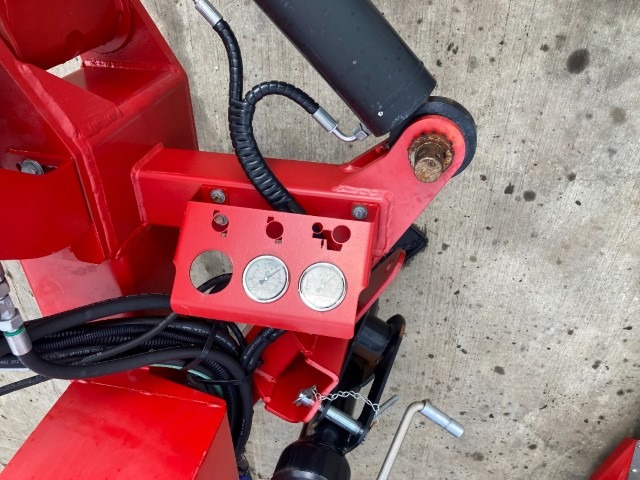

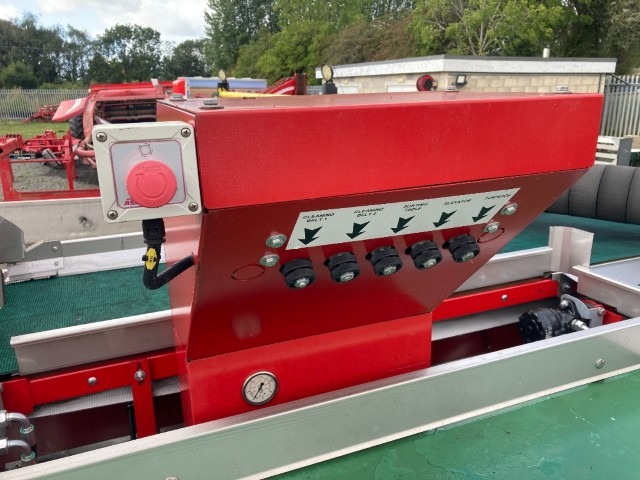

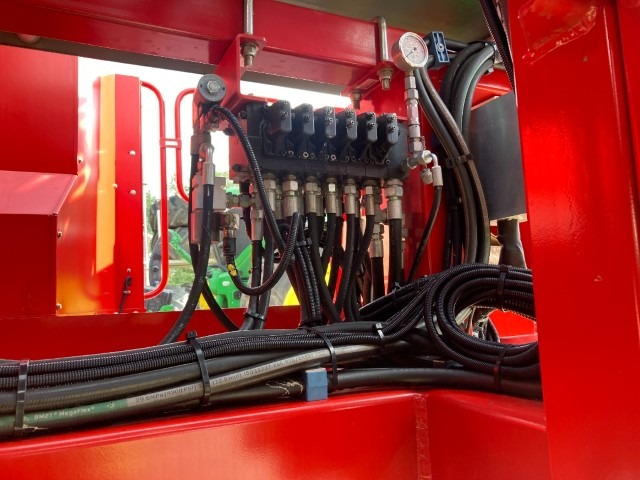

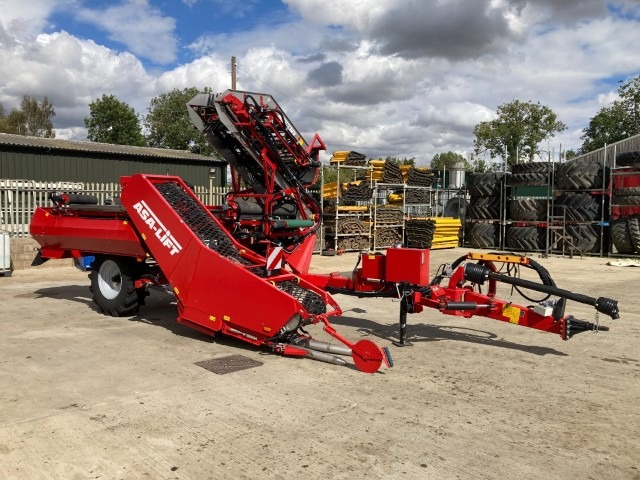

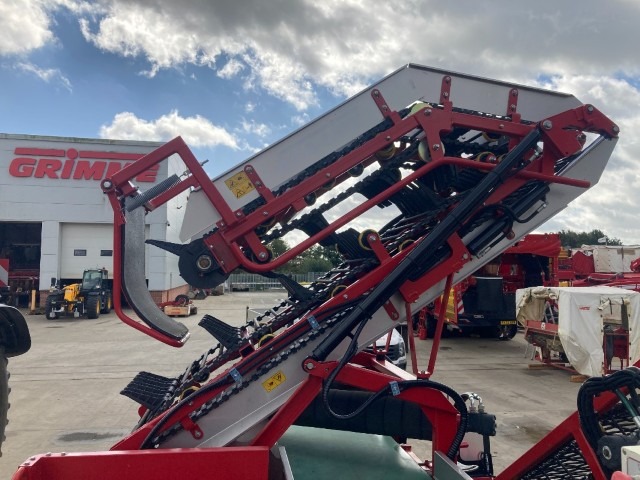

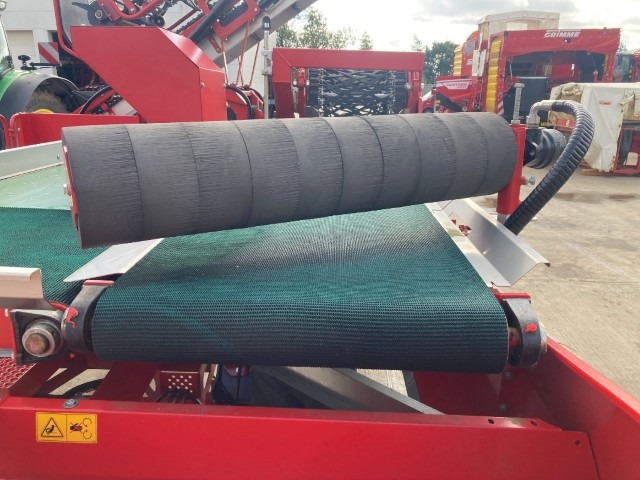

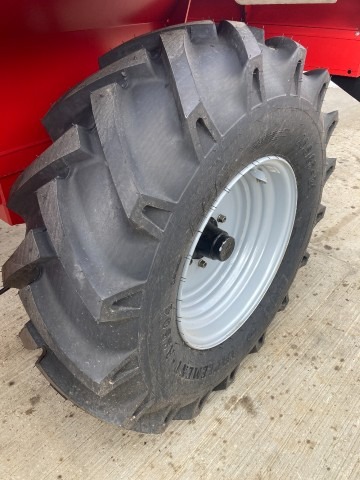

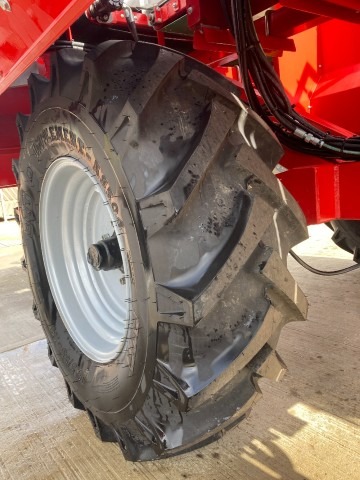

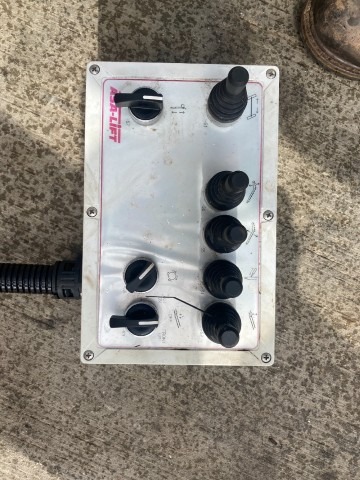

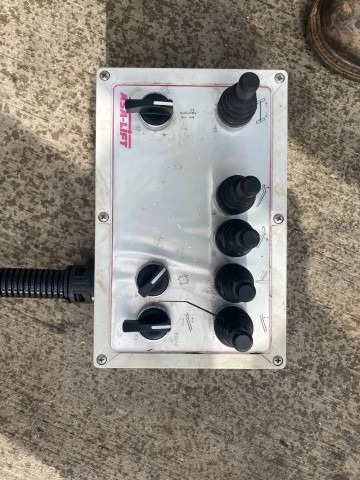

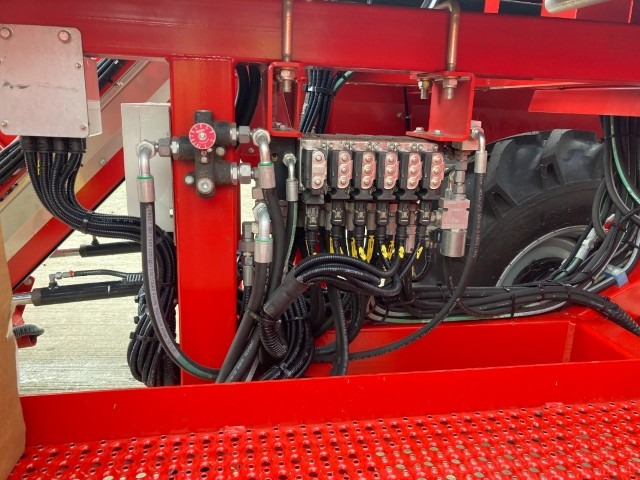

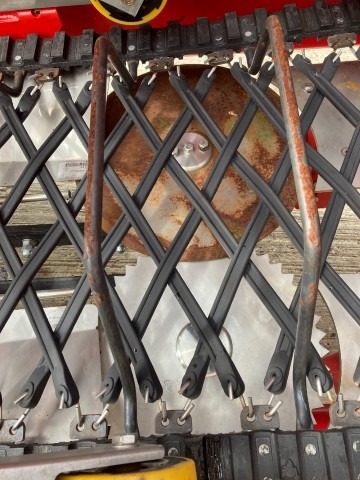

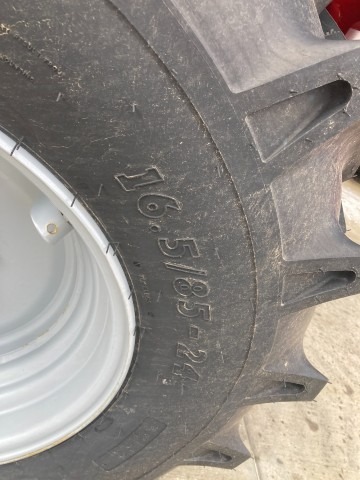

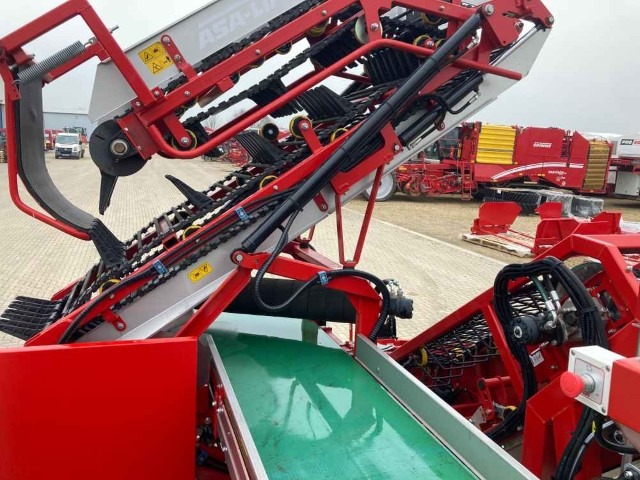

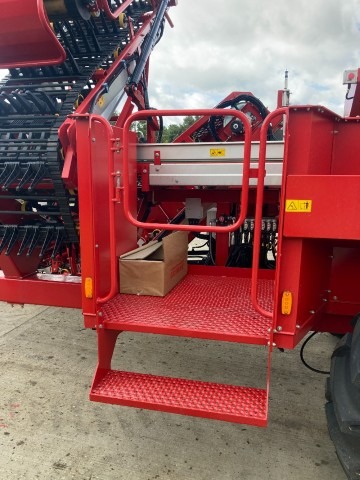

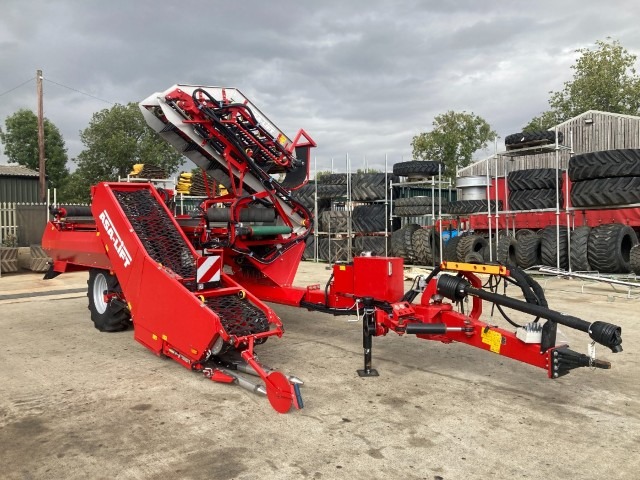

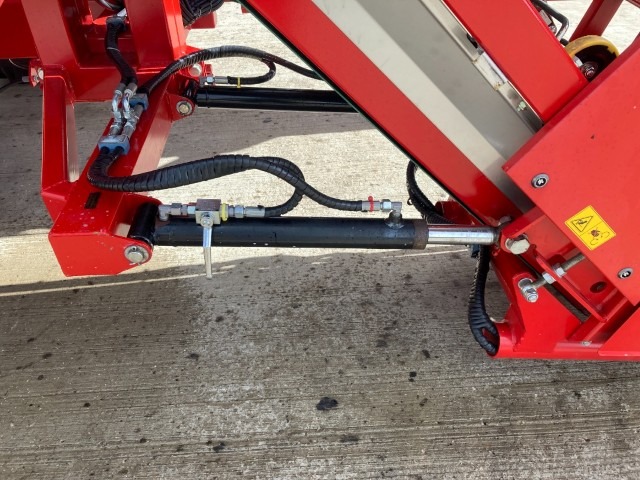

Model TC-1010E  Trailed cabbage harvester TC-1010E  - Standing platform for 2 persons by the sorting table.  - Elevator is 63cm (25”) wide.  - Discharge height is 3,5m (About 12,2ft) Trailer hight max. 3m.  - Special designed web.  - Web with pockets and rubber flights to avoid the cabbage to roll back.  - The elevator pivots in 2 places, two with  hydraulic cylinders.  - The elevator folds in for transport.  Control System  Control box  - Main control box mounted in the cab.  - The controls are a combinations of joysticks and switches  - The pictograms describe the functions  Drawbar  Standard drawbar  - The standard ring hitch comes with a Ø50 mm hole.   - A sleeve is available to reduce the hole to Ø32 mm   PTO Drive  PTO shaft with 6 spline  - Extra for wide angle PTO shaft.  - The wide angle is only at the tractor end.  Hydraulics  - Hydraulic driven:  - Cylinders and rotating functions.  - Powered by tractor's hydraulic.   - Hydraulic to drive harvesting section    - Small pump   - LS hose direct to tractor.  - Only for machines with open and close system.  - Save fuel due to load control.  - Control Only the cylinder functions.  - Oil cooler    Rear Axle  - Rear axle wheel steering, including automatic centre position.  - Hydraulic brake on rear wheels  Wheels  - Wheels left and right side 16,5/85 -24 Dia.:1300 Width: 420  Lights  - Road light including Rear-, Stop- and Flashlight. Rotating beacon  Cleaning Belts  - Small profile rubber belt.  - leads the cabbage to the cross/ sorting table.  - A foam roller moves the cabbage to the side onto the Cross/sorting table.  - Leaves will pass under the roller and back onto the soil.  Cleaning belt (2)   - After (1243)    - Leads the cabbage of the cross / sorting table.   - A foam roller moves the cabbage to the side onto the cross / sorting table.  - Leaves will pass under the roller and back onto the soil.   Sorting Table  - 630mm (25") wide sorting table.   - The cabbages are moved from the sorting table into the elevator.  - Hydraulic driven roller placed at the end of the sorting table.  - Emergency switch near standing platform.  Elevator  Extra heavy web for processing cabbage  - Heavy duty flights to cope with large cabbage  Depositor  - Special depositor for cabbage. Only used on elevator models.  Harvesting Section  ASA-LIFT "CAB Star" Harvesting section for cabbage 1010  - 1 Row Harvesting section  - Unique Top belt which supports and adjust the cabbage.   - The top belt is designed as a web with rubber support.  - Spring loaded idler rollers to support the web.  - Easy adjustment for small and large cabbage.  - Unique rotating knife system cuts the cabbage from the root with a clean cut.  - New support disc clear the roots when cutting.  - After the cabbage has been cut, they are transferred to a PVC belt  - The PVC-belt combined with the top web transport the cabbage to the rear section  - Pick-up section has hydraulic drive on all rotating functions.   - Intake has different options depend on type of harvest, Fresh or industry  - Min. row distance 55-60cm depend on size cabbage  Automatic depth control on pick-up section.  - Large depth wheel run between the cabbage rows  - The depth wheel activates two sensors  - Depth is adjusted, direct on the bracket with the sensor on the machine  - Depth cannot be regulated from control box  - Intake belt - 1 row  - Made with rubber V-belt.  - Small steel support for better intake.  - Extra for electric cylinder to adjust cutting height from the control box in the cab.   - 1 row  Torpedoes  - Hydraulic driven torpedoes for cabbage.  - Torpedo tube made in stainless steel.   - 1 row.
