Calculation of the financing
Down payment fee (€21,500)
Duration (in months)
≈ €4,342
/ Month*
*Approximate value | Initial price €215,000
462

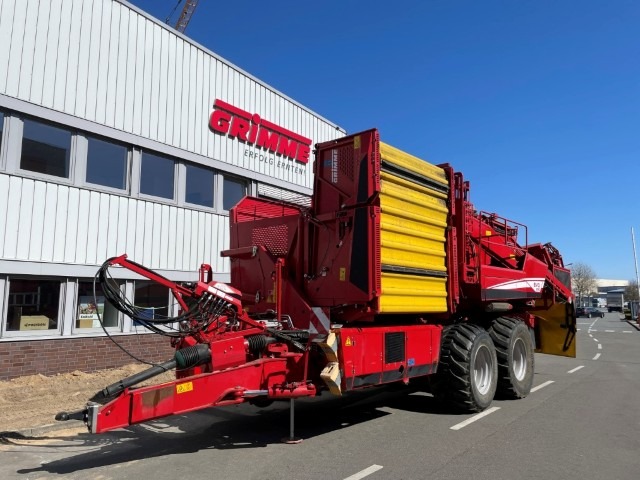

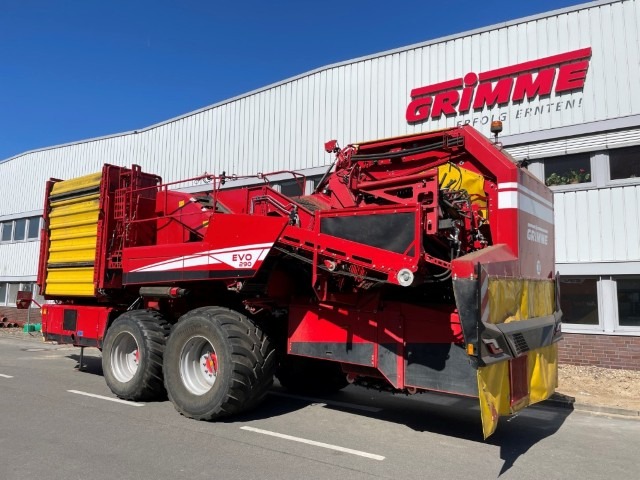

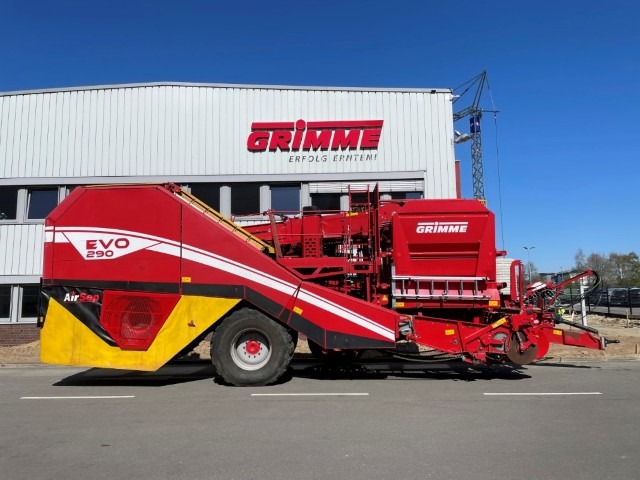

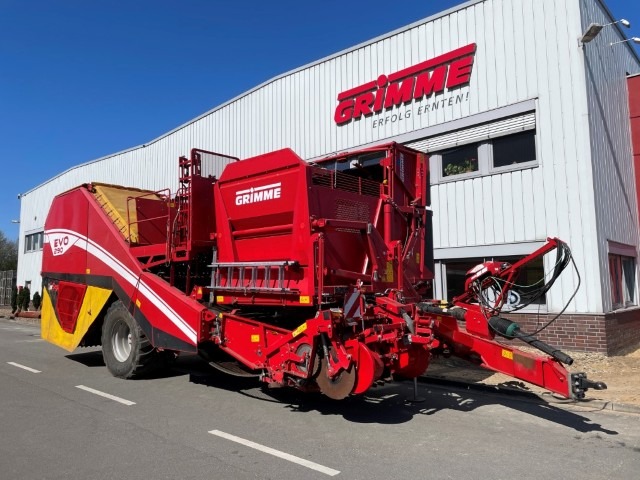

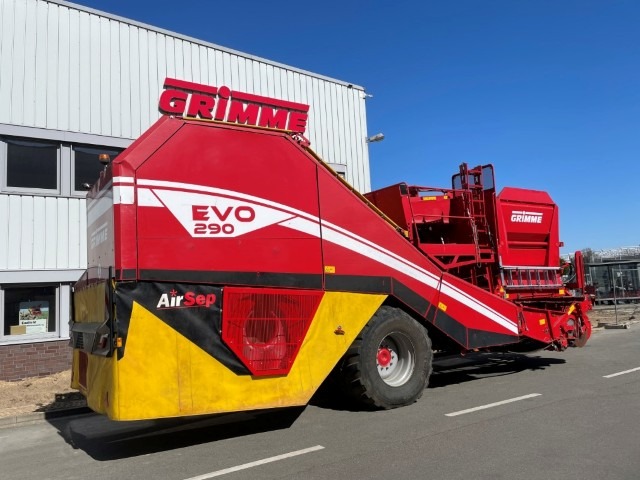

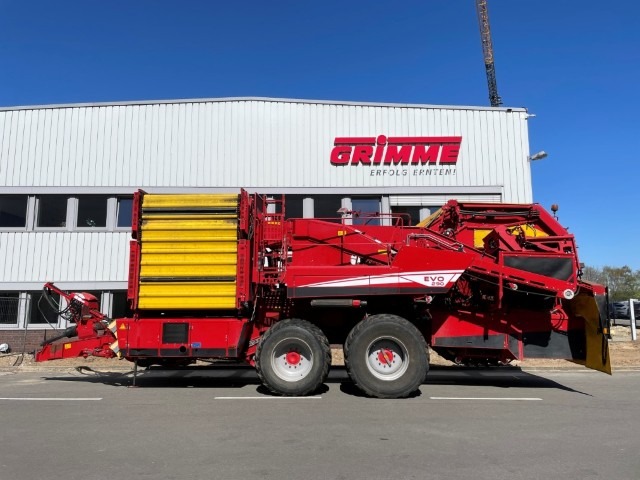

EVO 290 AirSep
Germany 49401 Damme
Manufacturer
GRIMME

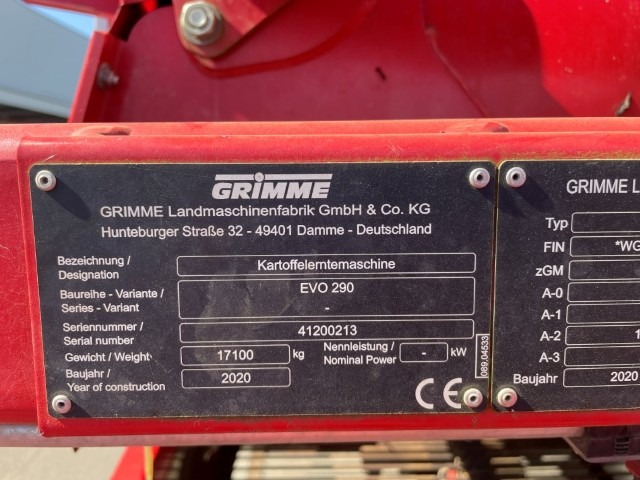

Serial number
41200213
Product category
Harvesting Technology
Year of construction
2020
Operating data

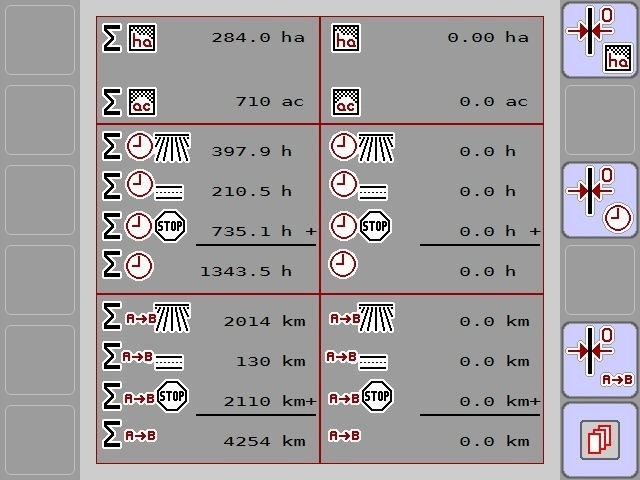

284 ha / 1,314 h
Condition
used
Unprocessed, without warranty claim
Provider
GRIMME Landmaschinenfabrik GmbH & Co. KG
Show contact details
Net price
€215,000
Configuration
Basic
country of first use
DE - Germany. With operator manual in official language
Single approval
E.00.430 Single approval
Vehicle approval
E.00.420 No EU type-approval - the machine cannot be approved within the European Union
Country package
Country package Germany (self collection)
Machine type
EVO 290
Price list
Pricelist 2020 (€)
Model
4120-110 EVO 290 AirSep
Attachment / Drive
Tractor attachment
E.10.010 Ball bearing hitch DM 80 mm
P.t.o.-shaft (splines)
Drive shaft 1 3/8" with 6 grooves
Drive unit gearbox
Direct drive
P.t.o.-shaft speed
1000 r.p.m. PTO shaft speed
Intake
Intake width
Intake width: 600 mm
Automatic self-centre steering
E.30.270 Automatic self-centre steering

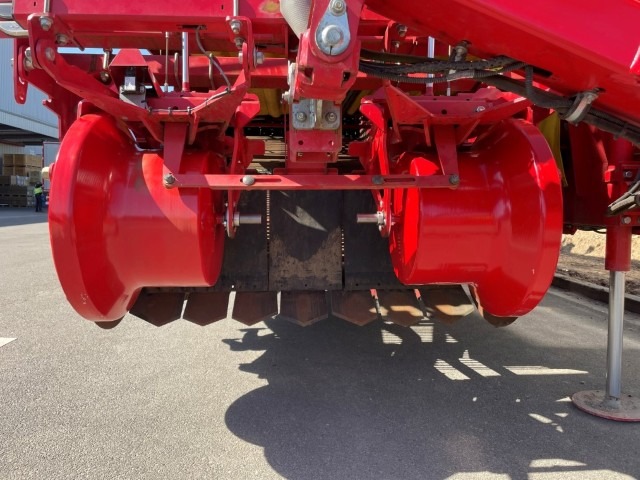

Diablo rollers
Half diablo roller with shoulder: DM 390 mm
Through typed share
Without
E.30.310 Additional disc coulter on the outer side
No
Vegetable intake
Without
Haulm deflector skids
without
Centre share
E.30.110 Individual adjustable centre share in lieu of discs and centre flap
Carrot digging unit
Without
Carrot share
Without
Row width
Row width 75 cm
Digging depth adjustment
without
Windrow intake
Without

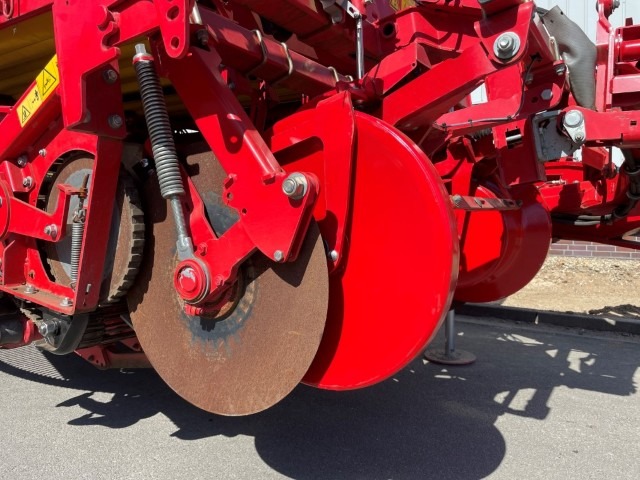

Disc coulters
2 disc coulters
Share blade
Long 3-piece share blade
Stone protection
E.30.130 Share blade stone protection
Depth control
E.30.215 TerraTronic

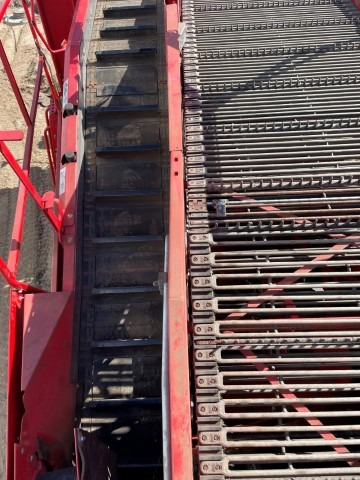

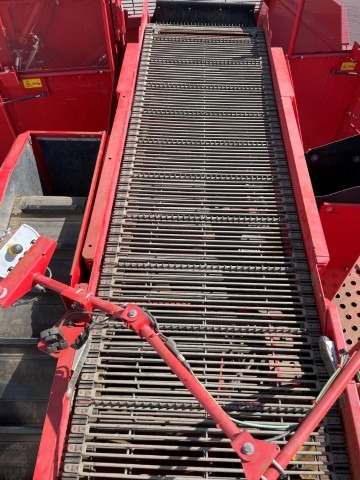

Main webs
1st main web drive
E.40.270 Pitch independent friction drive of 1st main web with support roller
2nd main web drive
E.40.628 Pitch independent friction drive of the second main web.
Drive intake web
Without
Intake web
Without intake web
1st main web connection
1st main web with joiner connection
2nd main web connection
2nd main web with joiner connection
E.40.280 Stainless steel in swing frame
Yes
E.40.750 1 haulm scraper shaft under deviner web, hydraulically driven
Yes
1st main web speed
1st main web speed fast
Deviner web pitch
Deviner web pitch 200 mm
Agitator unit 1st main web
E.40.400 Speed adjustment of the oscillator in the 1st main web adjustable via the control terminal
Main web channel width
Main web channel 1500 mm wide
Speedtronic-web
E.40.651 Speedtronic-Web: electronic speed control of the main web, depending on driving speed and load
1st main web pitch
1st main web pitch 35 mm
2nd main web pitch
2nd main web pitch 35 mm
Intake web pitch
Without
VarioDrive
E.40.650 VarioDrive: infinitely drive for 1st and 2nd main web
Scraper combs adjustment
E.40.740 Scraper combs adjustment from terminal

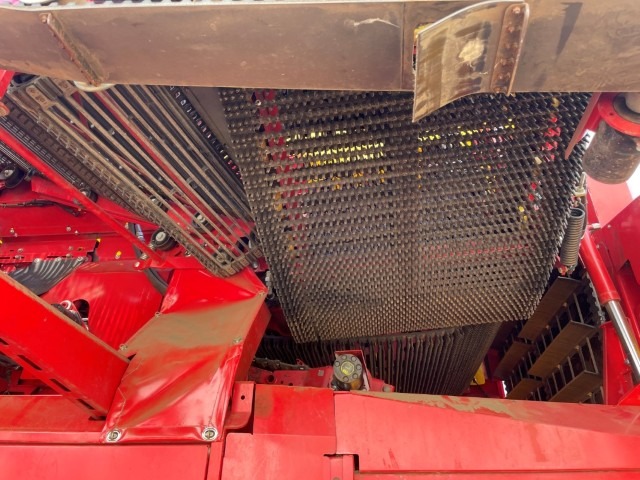

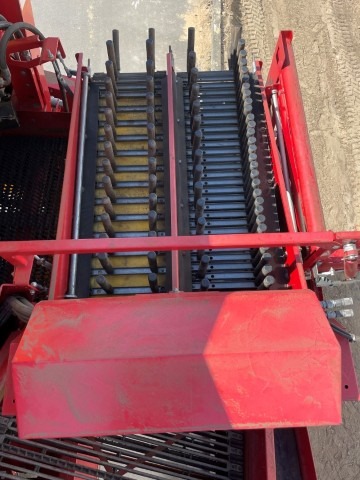

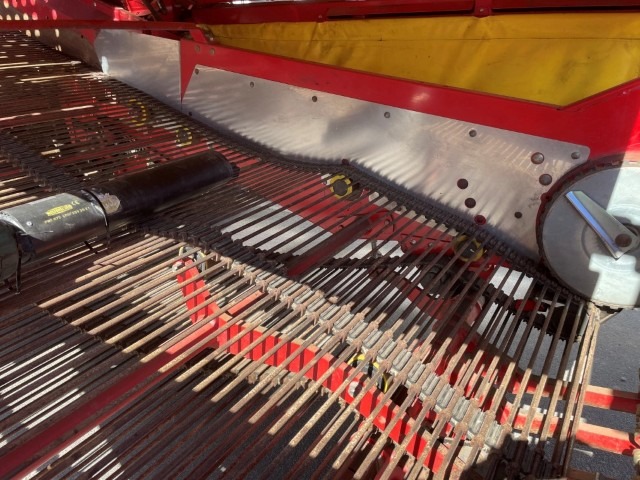

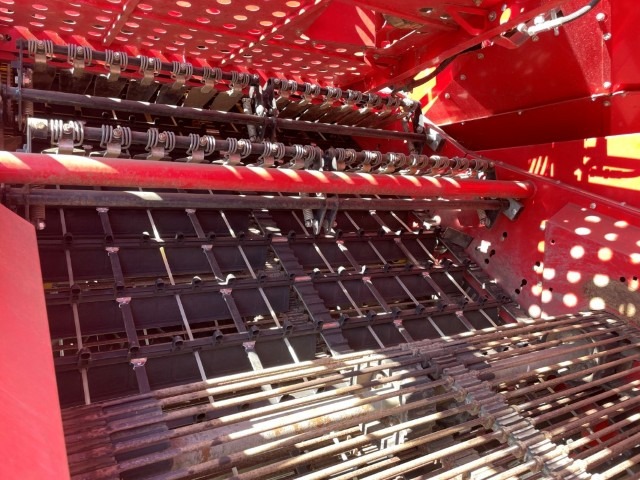

Separator units

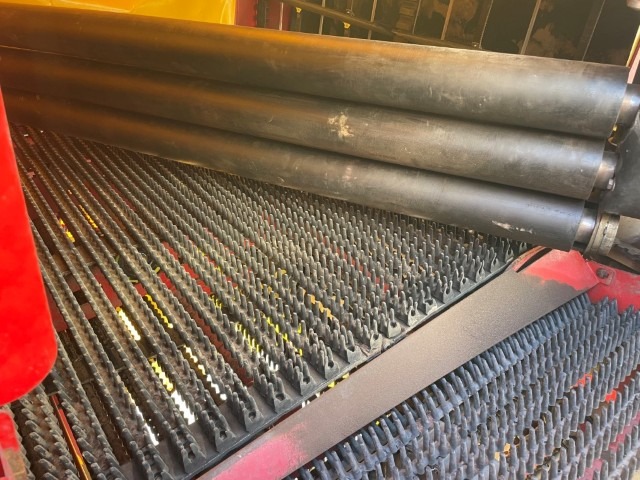

Hedgehog web of 2nd separator
2nd separator: hedgehog web with bars
Scraper 1st separator
E.50.508 1st separator with plain roller scraper
Scraper 2nd separator
2nd separator with plain roller scraper (standard)
Trash removal
without
E.50.530 Hedgehog web in 1st separator with cleaning device
No
E.50.721 Levelling automatic 1st and 2nd separator
Yes
Speed adjustment 1st and 2nd separator
E.50.740 Speed adjustment 1st and 2nd separator from terminal
Speed adjustment ClodSep (UB/SB separator)
E.50.650 Speed adjustment of the two brush or finger webs from terminal
1st separator scraper height adjustment
E.50.520 Height adjustment of the scraper roller of 1st separator via terminal
Height adjustment for ClodSep (UB/SB separator)
E.50.840 Finger web height adjustment r/h and l/h-side, from terminal
Levelling adjustment 1st and 2nd separator
E.50.511 Levelling adjustment 1st and 2nd separator from terminal
Oil radiator
E.50.210 Oil cooler for self hydraulic
Hedgehog bar profile 1st separator
Hedgehog bar 1st separator: H-profile
Hedgehog bar profile 2nd separator
Hedgehog bar 2nd separator: H-profile
Slip control
E.50.560 Slip control 1st separator and 2nd main web
Speedtronic-Sep
E.50.950 Speedtronic-Sep: Automatic speed adjustment of separators
1st separator pitch
1st separator web pitch 40 mm
2nd separator pitch
2nd separator web pitch 40 mm
Angle adjustment 1st separator
E.50.545 First separator scraper roller angle adjustment, mechanically
Picking table / bunker / unloading elevator
Potato chute version
Box filling chute for 1.20 m wide boxes
Filling optimization
E.60.850 Automatic bunker filling incl. automatic for final elevator and filling optimization

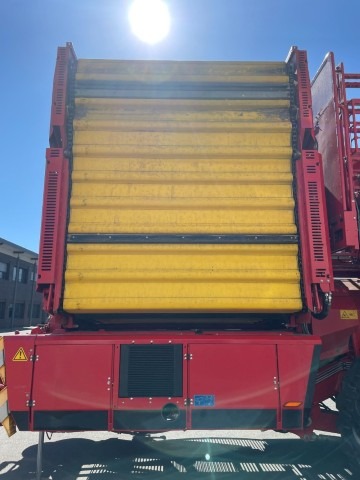

Bunker
9,0 t Bunker
Hopper web
Bunker web with canvas
E.60.510 Trash web control, difference speed to the picking table
Yes
E.60.725 Final conveyor with ultrasonic-sensor
Yes
E.60.870 Bunker head lowering
yes
E.60.930 Hydraulic ram to raise bunker end chute
yes
Bunker end box filling chute
E.60.910 Box filling chute / drop brake at the moving floor bunker head
Stone box
E.60.570 Stone bunker with cross conveyor
Stainless steel in bunker
without

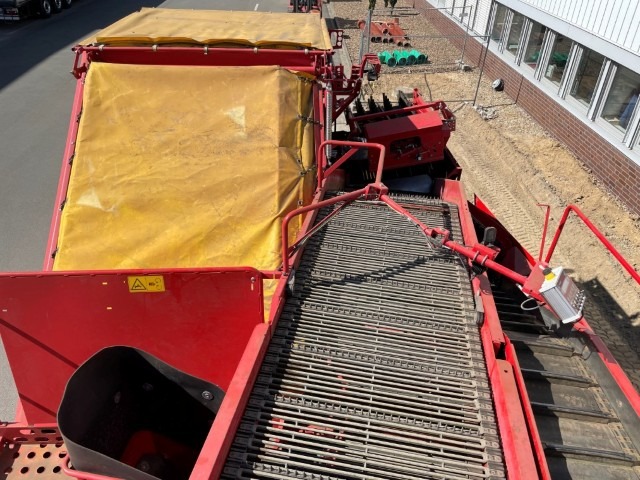

Picking belt
E.60.270 Picking web with high flights
Picking table width
Verlesetisch breit (930 mm) Beimengenbahn (280 mm)
Tyres / Chassis (and motor)

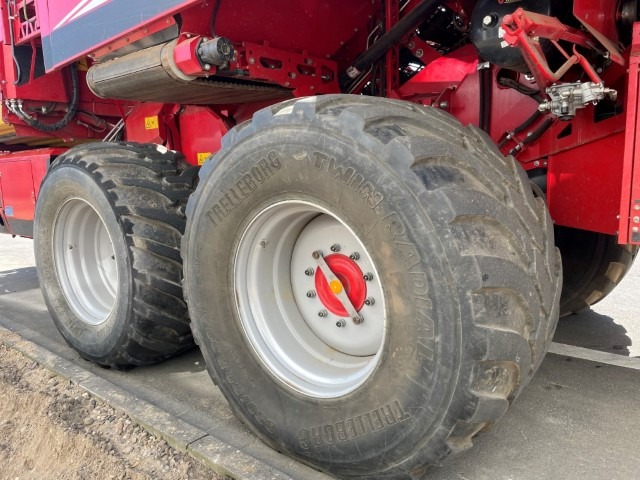

Wheels

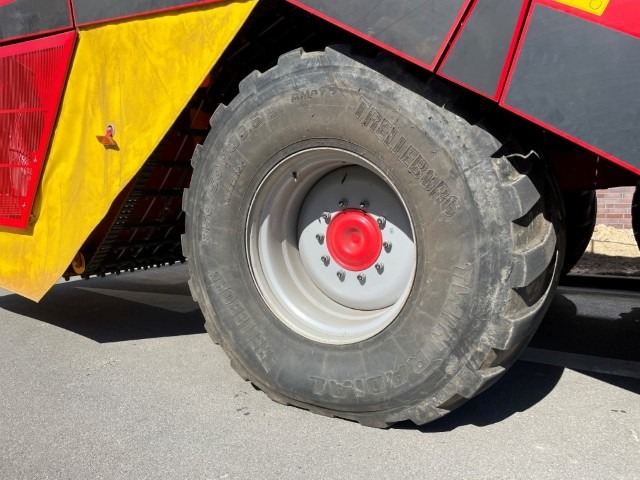

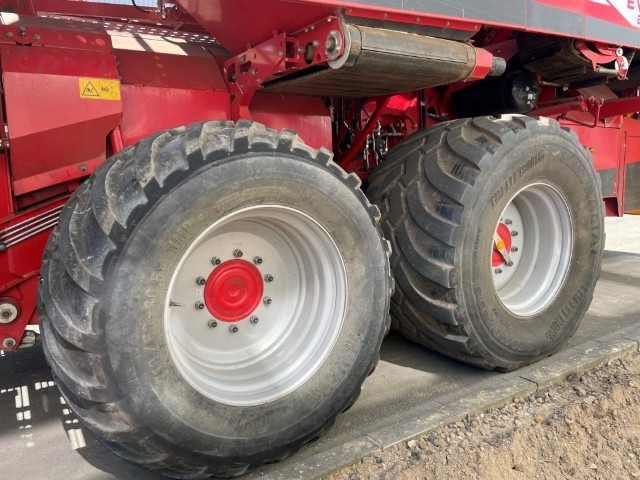

E.70.426 Wheels 850/50 R30.5
Brake system
E.70.003 Air brake
E.70.125 Automatic axle self-centre steering and automatic levelling
Yes
Hydrostatic wheel drive
Without
Comfort and handling
Operator terminal
E.80.655 ISOBUS operator terminal CCI 1200
E.80.725 MemoryControl
Yes
ISOBUS
E.80.700 ISOBUS
Camera at 1st main web
without
Camera bunker head
without
Camera from 1st to 2nd separator
without
Camera at picking table
Without
Comfort operator terminal
Control box GBX 860
connectivity
Connection to myGrimme
Reverse drive camera
Without
Video system
Without
Visual Protect system
Without
Lights / Miscellaneous
Extra label set
Standard machine label and sticker
Drive medium
Mineral oil
Operator's manual
Operators manual defined by the country/region of first use
Operator manual for operator terminal
defined by the country/region of first use
Load-sensing
Load-sensing kit with control line to the tractor
Premium machine delivery
Without
Shipping aid
Without
Further information
Maschine ist im aktuellen Zustand / machine is in actual condition.
