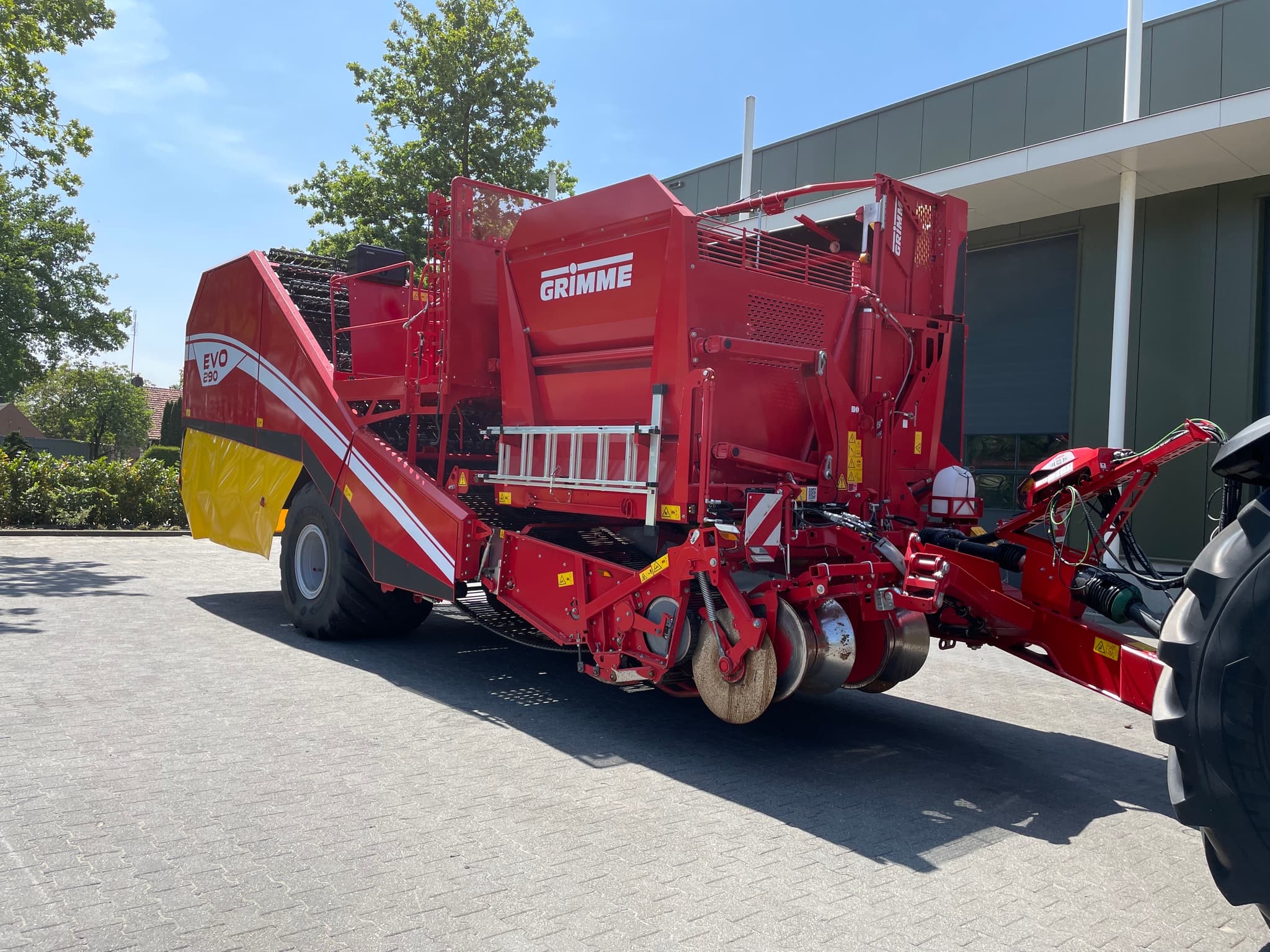

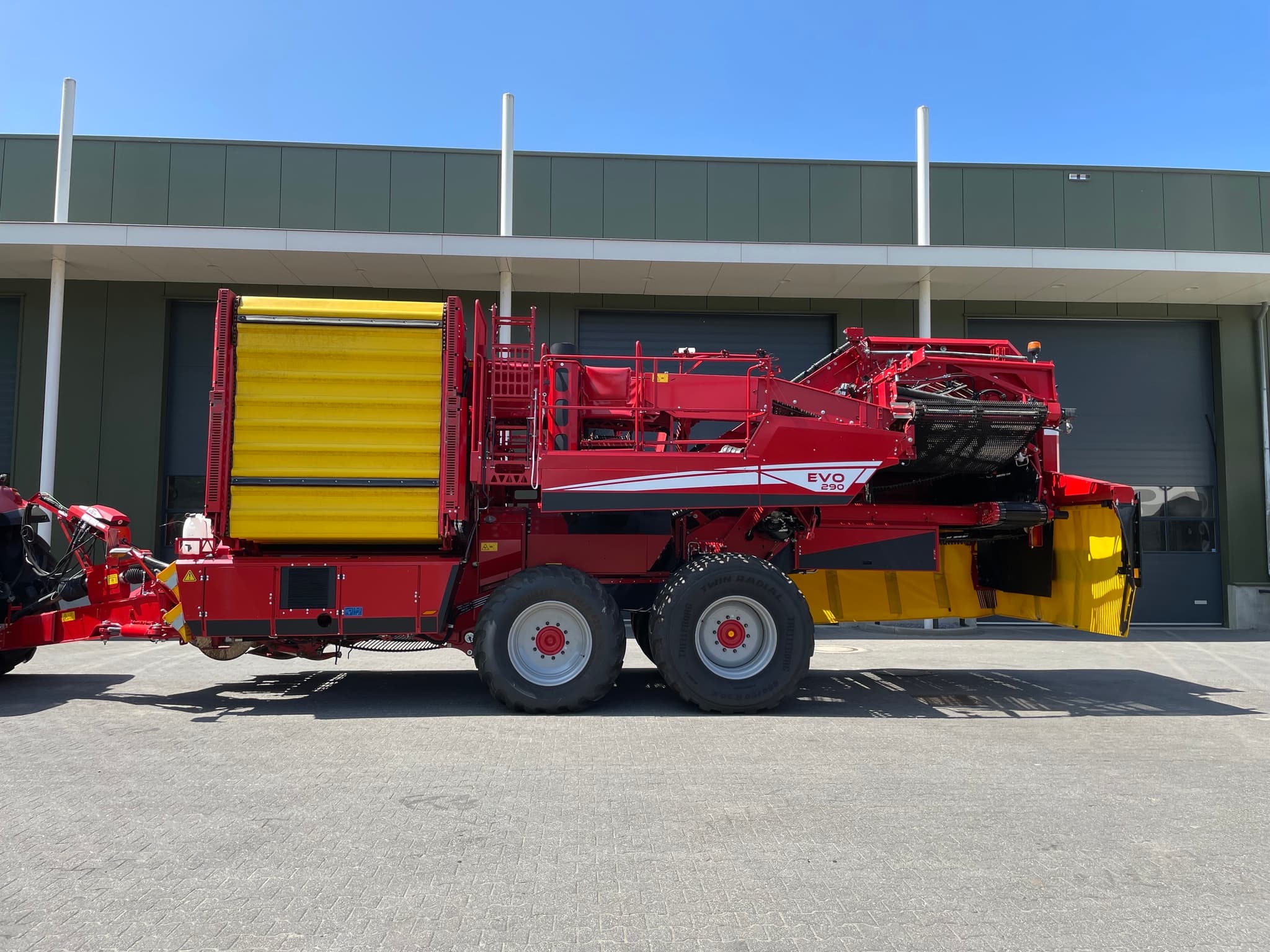

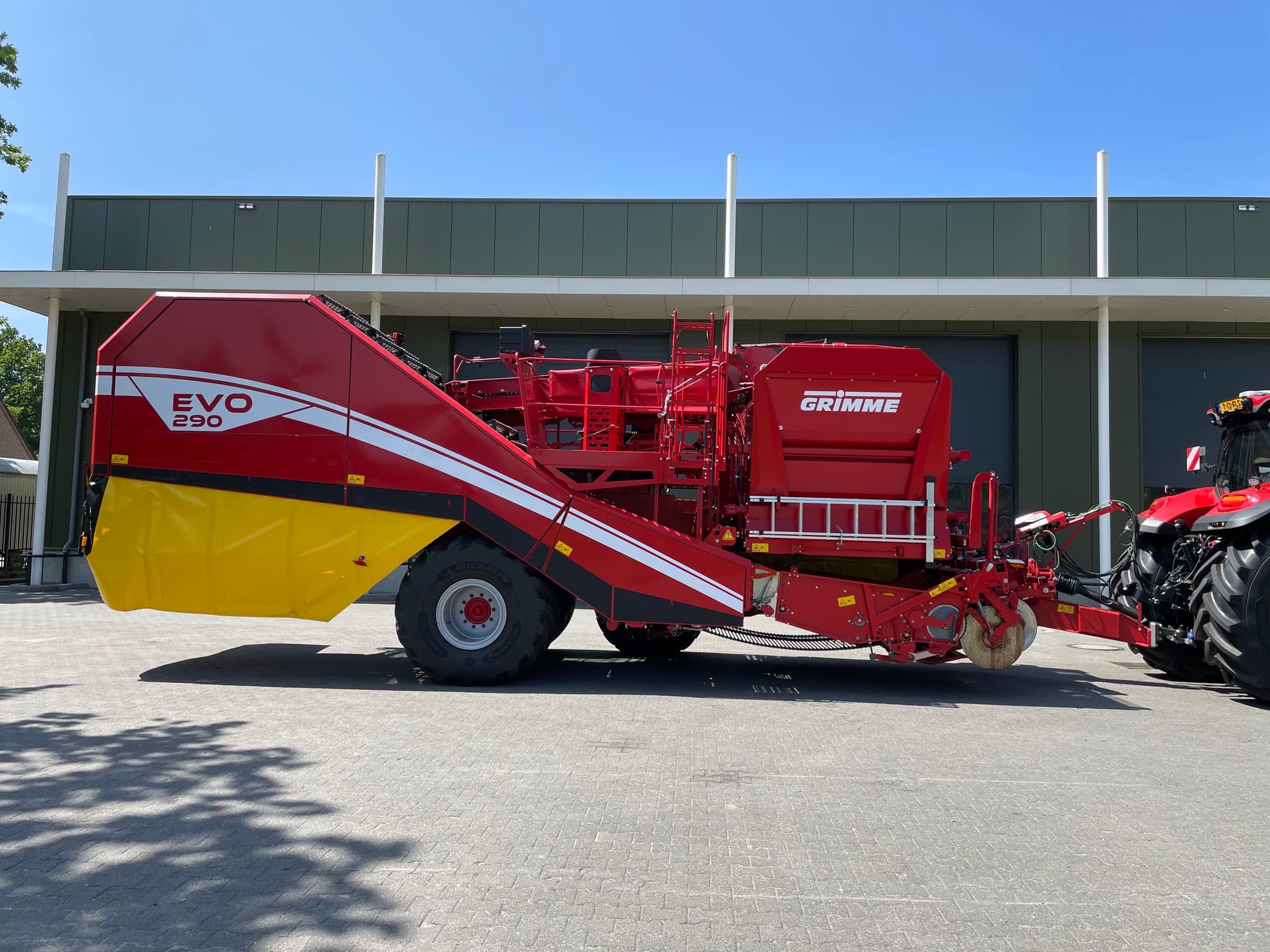

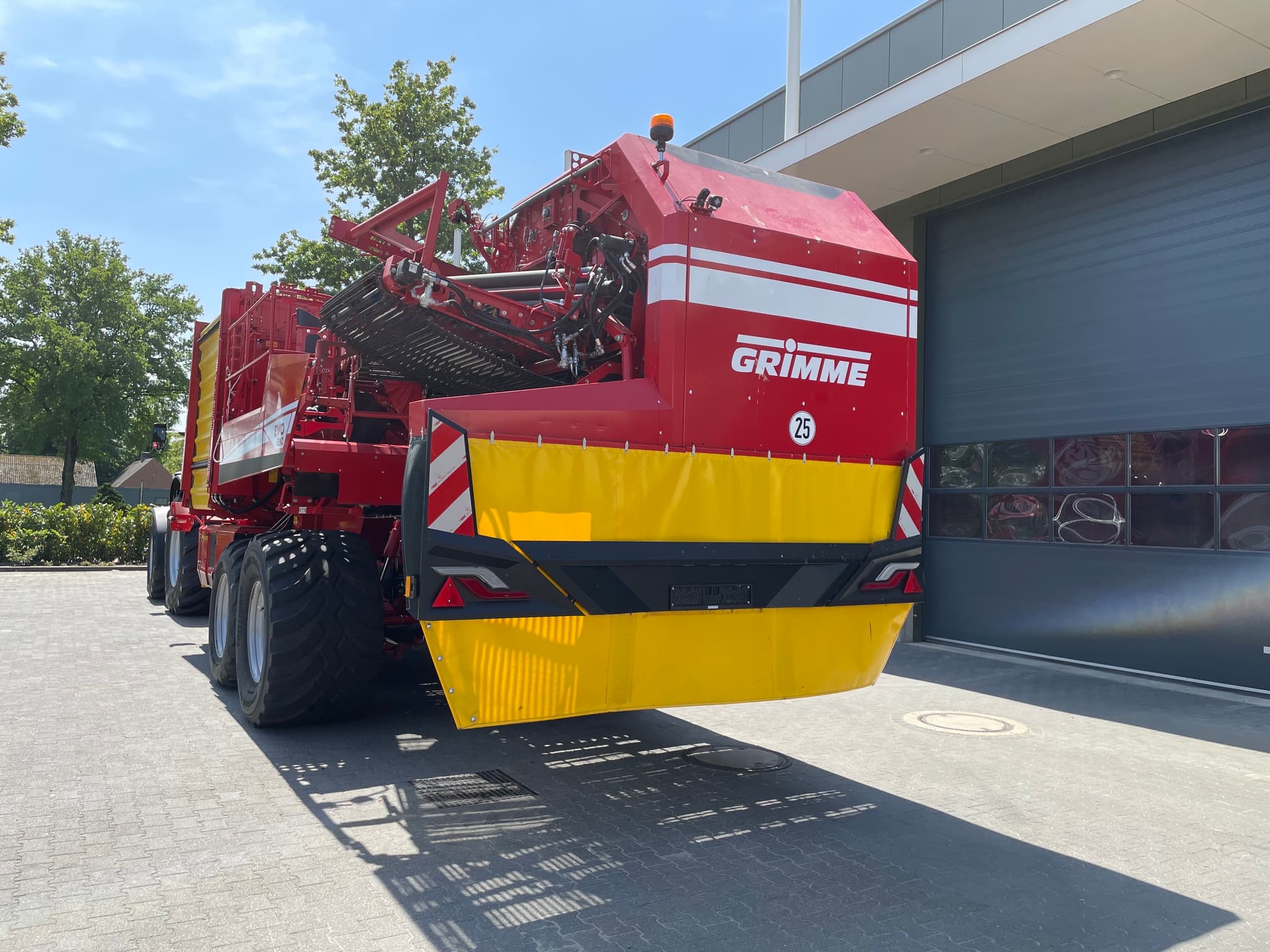

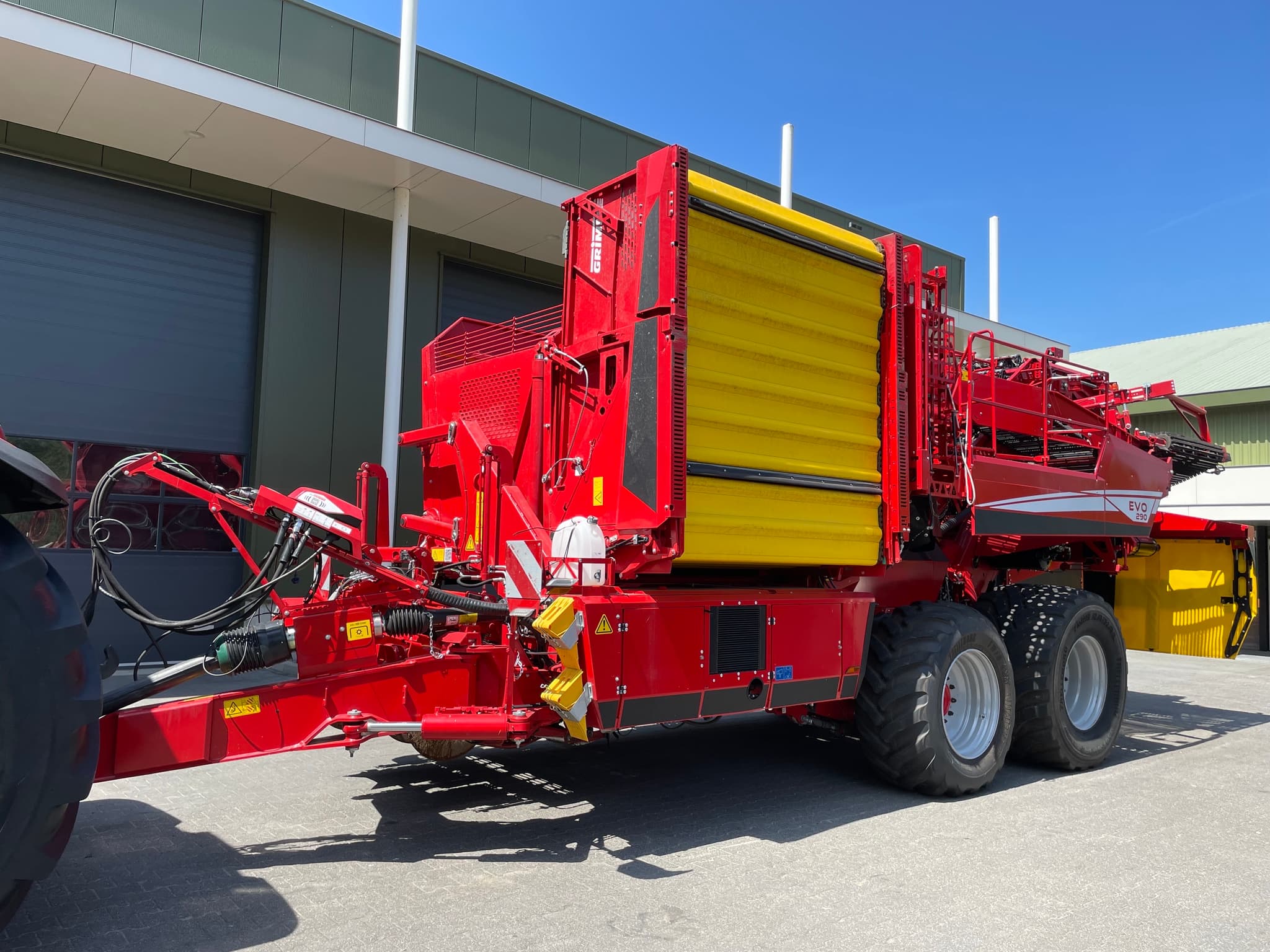

EVO 290

Equipment package

E.00.520 Comfort-Line

country of first use

DE - Germany. With operator manual in official language

Single approval

E.00.430 Single approval

Vehicle approval

E.00.420 No EU type-approval - the machine cannot be approved within the European Union

Country package

Country package Germany (self collection)

Machine type

EVO 290

Price list

Pricelist 2022 (€)

Model

4120-030 EVO 290 EasySep

Tractor attachment

E.10.010 Ball bearing hitch DM 80 mm

P.t.o.-shaft (splines)

Drive shaft 1 3/4" with 20 grooves

Drive unit gearbox

Direct drive

P.t.o.-shaft speed

1000 r.p.m. PTO shaft speed

Intake width

Intake width 580 mm

Automatic self-centre steering

E.30.270 Automatic self-centre steering

Diablo rollers

Diablo roller: DM 390 mm

Through typed share

Without

E.30.040 Share plate of plastic

No

E.30.310 Additional disc coulter on the outer side

No

Vegetable intake

Without

Haulm deflector skids

without

Centre share

E.30.110 Individual adjustable centre share in lieu of discs and centre flap

Carrot digging unit

Without

Carrot share

Without

Row width

Row width 75 cm

Digging depth adjustment

E.30.210 Digging depth adjustment via terminal

Windrow intake

Without

Disc coulters

2 disc coulters

Share blade

Long 3-piece share blade

Stone protection

Without

Depth control

E.30.220 Terra control

1st main web drive

E.40.270 Pitch independent friction drive of 1st main web with support roller

2nd main web drive

E.40.628 Pitch independent friction drive of the second main web.

Drive intake web

Without

Intake web

Without intake web

Restraining spring type

Restraining spring front of deviner web, "standard"

1st main web connection

1st main web with joiner connection

2nd main web connection

2nd main web with joiner connection

E.40.280 Stainless steel in swing frame

Yes

E.40.450 Clod breaker in 1st main web

No

E.40.750 1 haulm scraper shaft under deviner web, hydraulically driven

Yes

1st main web speed

1st main web speed fast

Deviner web pitch

Deviner web pitch 280 mm

Agitator unit 1st main web

E.40.400 Speed adjustment of the oscillator in the 1st main web adjustable via the control terminal

Main web channel width

Main web channel 1500 mm wide

1st main web pitch

1st main web pitch 40 mm

2nd main web pitch

2nd main web pitch 35 mm

Intake web pitch

Without

VarioDrive

E.40.650 VarioDrive: infinitely drive for 1st and 2nd main web

Scraper combs adjustment

E.40.740 Scraper combs adjustment from terminal

Hedgehog web of 2nd separator

2nd separator: hedgehog web with bars

Scraper 1st separator

E.50.508 1st separator with plain roller scraper

Scraper 2nd separator

2nd separator with plain roller scraper (standard)

Type of scraper of 2nd separator

E.50.647 Triple scraper roller

Trash removal

E.50.561 Trash cross conveyor behind first separator

E.50.530 Hedgehog web in 1st separator with cleaning device

No

E.50.721 Levelling automatic 1st and 2nd separator

Yes

Speed adjustment 1st and 2nd separator

E.50.740 Speed adjustment 1st and 2nd separator from terminal

Speed adjustment ClodSep (UB/SB separator)

without

1st separator scraper height adjustment

E.50.520 Height adjustment of the scraper roller of 1st separator via terminal

Height adjustment for ClodSep (UB/SB separator)

without

Levelling adjustment 1st and 2nd separator

E.50.511 Levelling adjustment 1st and 2nd separator from terminal

Oil radiator

E.50.210 Oil cooler for self hydraulic

Hedgehog bar profile 1st separator

Hedgehog bar 1st separator: V-profile

Hedgehog bar profile 2nd separator

Hedgehog bar 2nd separator: V-profile

Slip control

E.50.560 Slip control 1st separator and 2nd main web

1st separator pitch

1st separator web pitch 40 mm

2nd separator pitch

2nd separator web pitch 40 mm

Turbo Clean

E.50.900 Turbo Clean

Angle adjustment 1st separator

E.50.550 1st separator scraper roller angle adjustment, from terminal

Angle adjustment second separator

E.50.760 2nd separator, scraper roller, angle adjustment from terminal

Type of trash conveyor

Without

Potato chute version

without

Filling optimization

E.60.850 Automatic bunker filling incl. automatic for final elevator and filling optimization

Picking table, lighting

Without

Bunker

9,0 t Bunker

Hopper web

Bunker web with canvas

E.60.510 Trash web control, difference speed to the picking table

No

E.60.725 Final conveyor with ultrasonic-sensor

Yes

E.60.820 Bunker chain greasing system

No

E.60.870 Bunker head lowering

no

E.60.930 Hydraulic ram to raise bunker end chute

no

Bunker end box filling chute

Without

Comfort package

E.60.266 Comfort package for picking table PRO

Stone box

Without

Stainless steel in bunker

without

Picking belt

E.60.270 Picking web with high flights

Picking table width

Verlesetisch breit (930 mm) ohne Beimengenbahn

Axle

E.70.615 Tricycle chassis, called TriSys

Wheels

E.70.506 Wheels 850/50 R30.5 l/h, 1000/50 R25 r/h

Brake system

E.70.003 Air brake

E.70.125 Automatic axle self-centre steering and automatic levelling

Yes

Hydrostatic wheel drive

E.70.720 Hydrostatic wheel drive with wide angle drive shaft and hydraulic coupling

Allowed maximum speed

Speed 25 kmph

Comfort operator terminal

Control box GBX 860

Extra label set

Standard machine label and sticker

Drive medium

Mineral oil

Operator's manual

Operators manual defined by the country/region of first use

Load-sensing

Load-sensing kit with control line to the tractor

Premium machine delivery

Without

Shipping aid

Without

ISOBUS operator terminal

I.100.205 ISOBUS operator terminal - CCI 1200

ISOBUS basic equipment

I.100.050 ISOBUS basic equipment

MemoryControl

I.110.320 Memory Control - Electronic storage of machine settings

Package of cameras for SmartView

I.110.510 Camera package SmartView PRO

Monitor for SmartView

I.110.500 Monitor for SmartView

Speedtronic-Sep

I.110.710 Speedtronic-Sep: Automatic speed adjustment of separators

Speedtronic-web

I.110.705 Speedtronic-Web: Working-speed and load-dependent main web control

Visual Protect system

I.110.555 Visual Protect Pro - all-round function monitoring

connectivity

I.120.100 Connection to myGRIMME
